Boilerplate G300 Painting Galvanized Sheet Metal ASTM

  • 1
  • 2

Brand Name : HUIYI

Model Number : SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54D + Z Q195 / 215 / 235 And etc

Certification : SGS,BV,ISO9001

Place of Origin : China

MOQ : 25 tons each thickness

Price : negotiated

Payment Terms : L/C, T/T

Supply Ability : 50000 tons per year

Delivery Time : 20-35days

Packaging Details : Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet

Color : Red,Green,Blue,Grey,White,Brown,Black,Yellow,Maroon,Orange ,etc.

Paint Brand : Akzo Nobel,Dulux,Nippon,PPG,Local

Front Paint Coating : 10-25um

Back Paint Coating : 5-20um

AL-ZN Coating : AZ30-AZ150

Corrugated width : 680mm or other required size

Thickness : 0.11--1.2mm

Coil ID : 508/610mm

Surface treatment : Coated, Galvanized, Printing ,galvalume

Application : Roofing, transportation, Building Construction, Boiler Plate

Standard : GB, ASTM, JIS, AISI, BS

Product name : Color coated Composite board series/CGCC,CGCH,DX51D,G550,G450,G400,G300

Contact Now

CGCC,CGCH,G550,G450,G400,G300 Painting Galvanized Sheet Metal

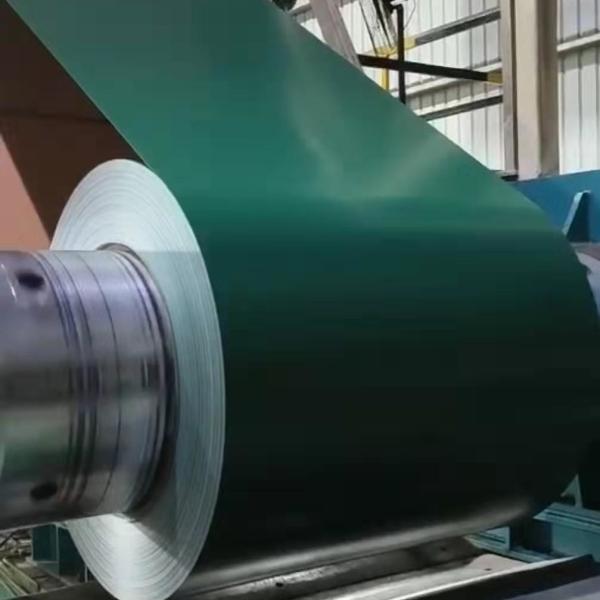

The prepainted steel sheet in coil is a product obtained by subjecting a hot-dipped galvanized steel sheet, and galvalume steel sheet, or an aluminum sheet to a surface chemical treatment (coating), followed by baking and curing.The total thickness of the pre-panted galvanized steel coil is composed of the base steel – coating -primer – top paint – protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm. The thinner the base steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.PPGI is also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet substrate.

MAIN PARAMETERS:

Thickness: 0.11mm-1.2mm
Width:750mm-1300mm
AZ coating: 30g/m²-120 g/m²
Primer layer(base coat):5-10um,
Fine coating layer(facade coat):10-25um.
The types of paints: polyester(PE), silicon modified polyester(SMP),polyvinylidene fluoride(PVDF),epoxy resin.
Coil weight:3-6mt
Coil inner diameter:508mm or 610mm.
Base Material: Hot-dip galvalume steel

STANDARD&GRADE
ASTM A755M-03 EN10169-2003 JIS G 3322:2007
Commercial Quality CS DX51D+AZ CGLCC
RANGE OF APPLICATION:
Box ,Containers, Furniture And Office Equipments , Transportation Industry, Structural engineering ,building and elextical and lighting equipments and etc.

Characteristics of prepainted gavalume steel :

Color Coated Steel Feature Excellent Decorativeness , Bendability , Corrosion Resistance, Coating Adhesion And Color Fastness .

They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation , Conservation Of Energy And Resistance To Contamination .

Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti - Scratch Qualities , Can Be Produced In Various Colors , And Has Credible Quality And Can Be Mass - Produced Economically.

Common roofing size as below:

Boilerplate G300 Painting Galvanized Sheet Metal ASTM Boilerplate G300 Painting Galvanized Sheet Metal ASTM

Boilerplate G300 Painting Galvanized Sheet Metal ASTM Boilerplate G300 Painting Galvanized Sheet Metal ASTM

Boilerplate G300 Painting Galvanized Sheet Metal ASTM Boilerplate G300 Painting Galvanized Sheet Metal ASTM

Boilerplate G300 Painting Galvanized Sheet Metal ASTM Boilerplate G300 Painting Galvanized Sheet Metal ASTM

Boilerplate G300 Painting Galvanized Sheet Metal ASTM Boilerplate G300 Painting Galvanized Sheet Metal ASTM

Query:

1. How can you make sure your quality?

A: We have experienced inspector to check each order before production,if can not reach customer's

quirements,we won't export to our clients.

2. Hour about your experience?

A: We have exported steel products more than 6years, know all kinds of steel products very well.We can

always grasp the market and suggest our clients to order at the appropriate time.

3. How about your after-sales service?

A: We will give ourcustomer warranty according to the products requirements,if it is our quality issue in the warranty,we will help all customers to solve it until they are satisfied.
